UL ANSI Listed Panic Hardware Gravity Type Door Coordinator

* UL ANSI Listed Panic Hardware Gravity Type Door Coordinator

* Lenght: 6-1/2" (165mm) or 8-1/2" optional

* ANSI 156.3 ; BHMA 4.4.4 TYPE ; UL listed

* Material - Forged Brass, Nylon roller

* 7" projection

Using door sizes and astragal locations select the device number:

Use on pairs of doors with astragal on active door up to 4'

With astragal on inactive up to 3’4”

With astragals on both doors up to 2’10”

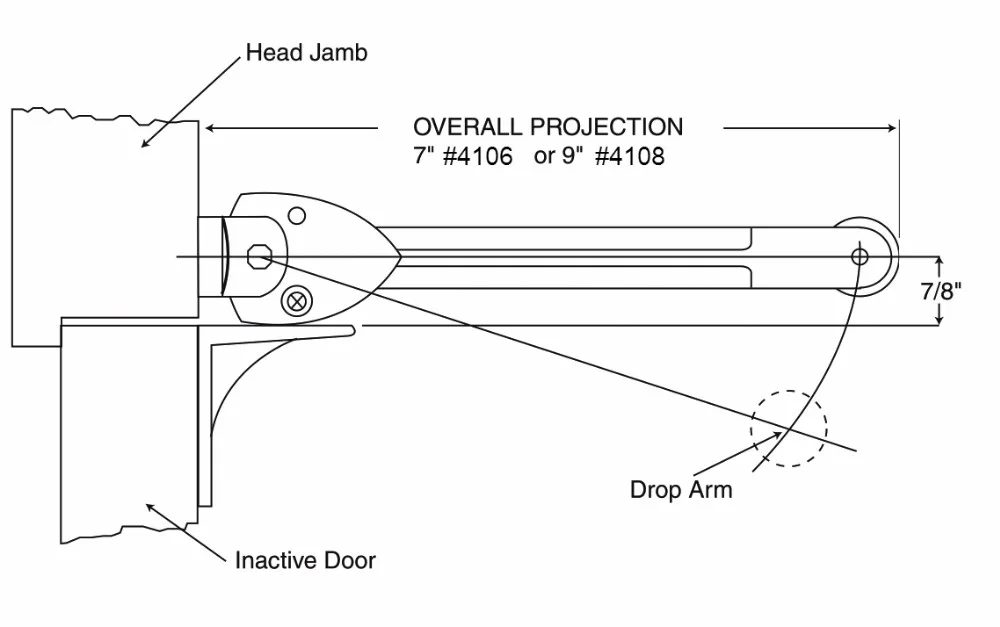

The coordinators are designed for use on pairs of doors with or without an astragal. Roller arm (#4106 - 7" projection) prevents active door from closing before the inactive door.

Gravity action arm and door bracket are adjustable on the job for ease of installation, rubber roller provides quiet and efficient operation, and helps protect the astragal and doors from damage.

Nylon roller or short arm glides smoothly over door bracket and strike, ensurirg sllent operation.

DESRIPTIVE SPECIFICATIONS
All paired doors shall have Door Coordinators which will prevent the active door from closing before the inactive door, by means of a gravity action arm and roller, adjustable on-site, Coordinator shall have a 7" projection and have all-brass construction.
