IC Interchangeable Core Mortise Cylinder

033 SFIC

Product Description

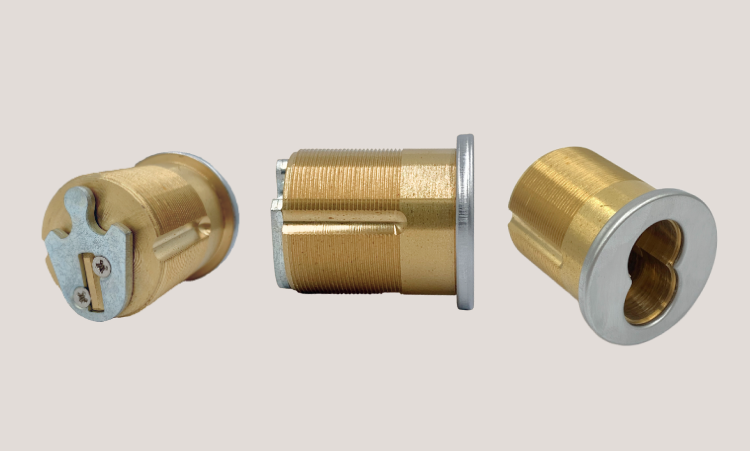

* IC Interchangeable Core Mortise Cylinder

* Cylinder Housing for Small Format Interchangeable Core

* Solid brass material

* Length of cylinder housing for 6 Pins : 1-1/4"

* Length of cylinder housing for 7 Pins : 1-3/8" - 3"

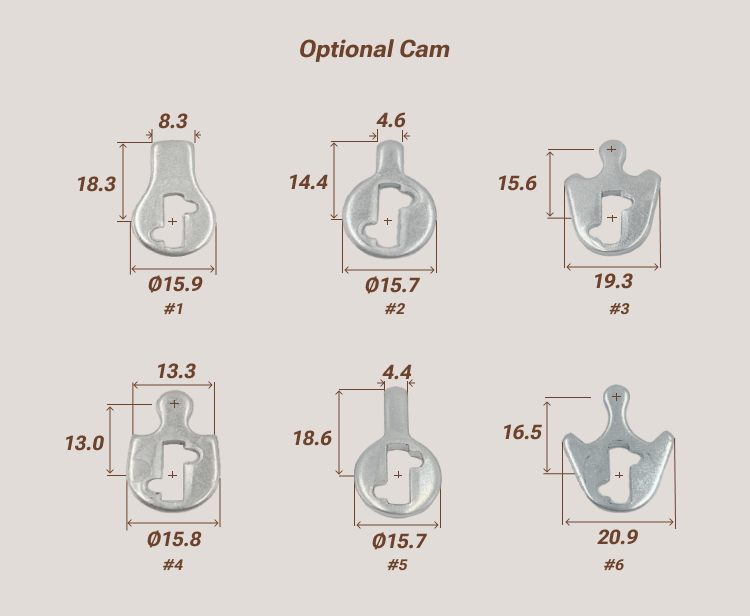

* Different cams available

* Cylinder can be with or without interchangeable re-keyable cylinder core

* Stainless steel material available

* Finish US03, US04, US10B, US15, US26, US26D, US32, US32D available



US03 – Bright Brass

US04 – Satin Brass

US10B – Dark Bronze

US15 – Satin Nickel

US26 – Bright Chrome

US26D – Satin Chrome

US32 – Bright Stainless Steel

US32D – Satin Stainless Steel
















Product Description

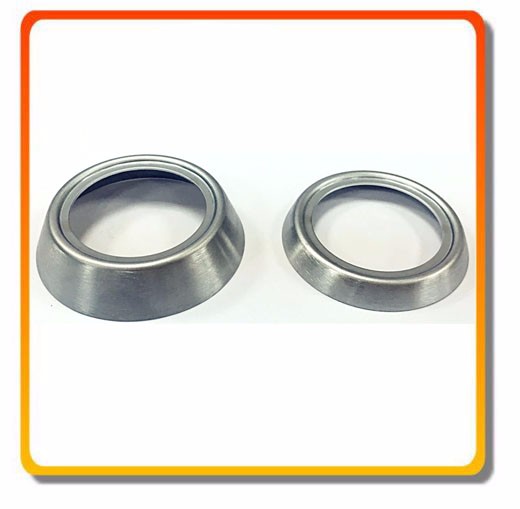

Trim Ring for  IC Interchangeable Core Mortise Cylinder





Rear Closure Ring for  IC Interchangeable Core Mortise Cylinder

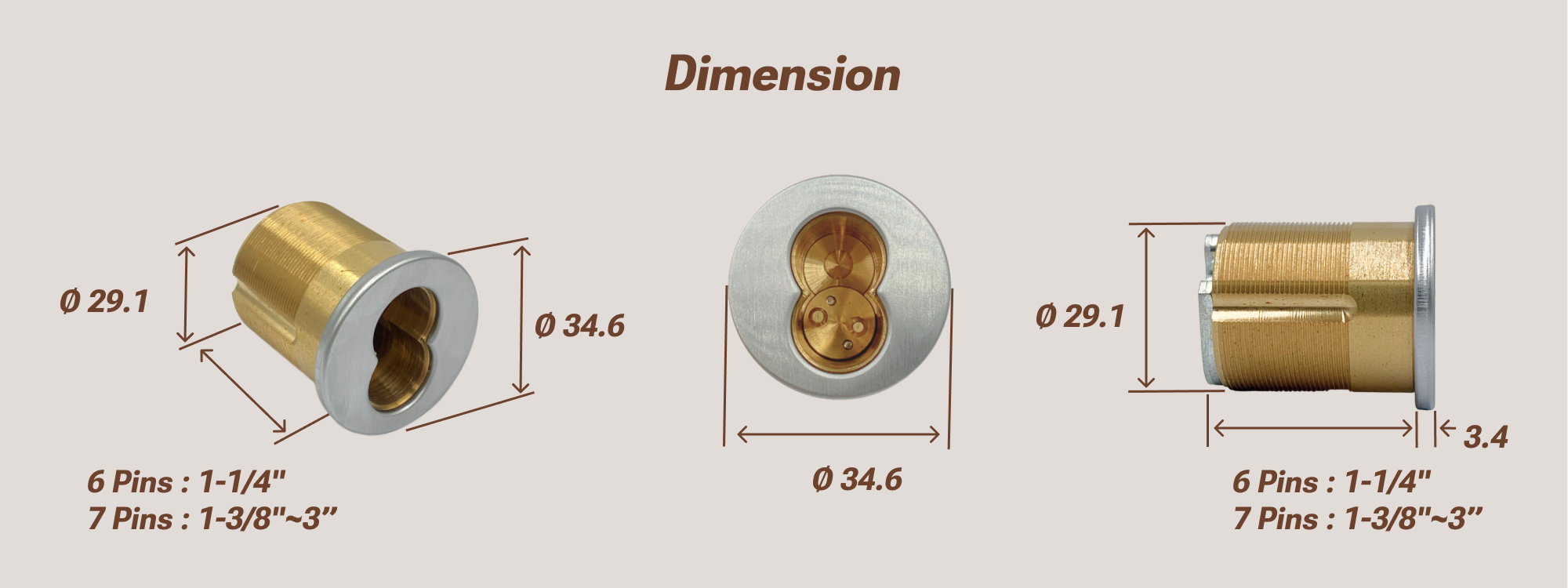

Dimension

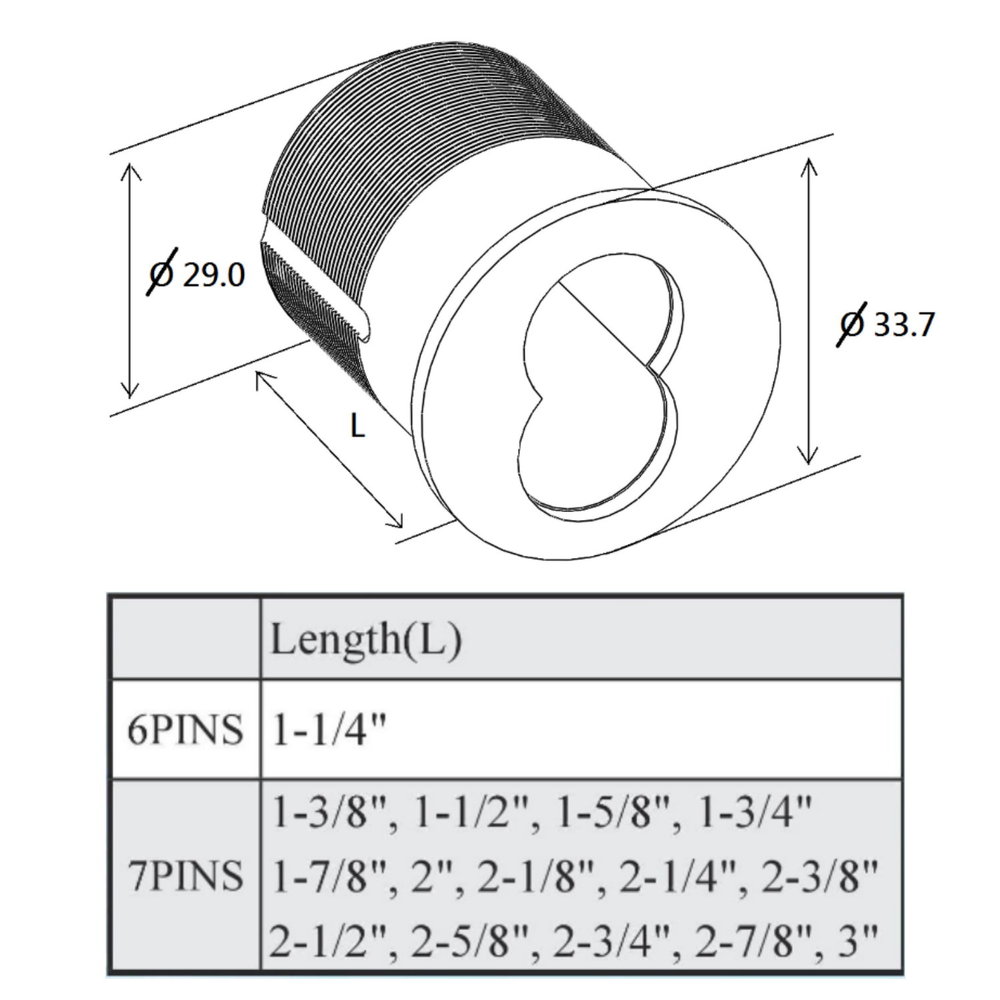

Drawing of IC Interchangeable Core Mortise Cylinder











Related Products





Small Format Interchangeable Core / Removable Core



* Figure 8 style

* IC core is also suitable for lockset and lever set replacement

* Usable to Mortise Cylinder, Cylindrical Lock, Euro Profile Cylinder, Oval Cylinder, Padllock, Cam Lock...

* Brass material

* Cylinder with interchangeable & re-keyable cylinder core

* With 1 control key and 2 operating keys

* A specialized "control" key for insertion and extraction of the core

* The cylinder core with 6-pin or 7-pin tumbler mechanism

* 1,000,000 key combinations of 6-pin cylinder

* 10,000,000 key combinations of 7-pin cylinder

* No screwdriver and tool needed

* Different surface finished available (US03, US04, US10B, US15, US26, US26D, US32, US32D)

* Uncombinated (no pins & springs) / Keyed alike (KA) / MK / GMK / GGMK / GGGMK system for optional order

* Different keyway available (Keyway: A, B, C, D, E, F, G, H, J, K, L, M, N, Q, WA, WB, WC, WG, TB available)

* Construction key function available





Related Products of Small Format Interchangeable Core

- Mortise Cylinder

- Euro Profile Cylinder

- Oval Cylinder

- Padlock

- Rim Cylinder

- Cam Lock

- Push Lock

- Knob Lock

- Lever Handle
