Backset 1-1/8 Inch Aluminum Door Deadlatch lock

005

* Backset 1-1/8 Inch Aluminum Door Deadlatch lock

* Swinging door hardware for aluminum stile doors

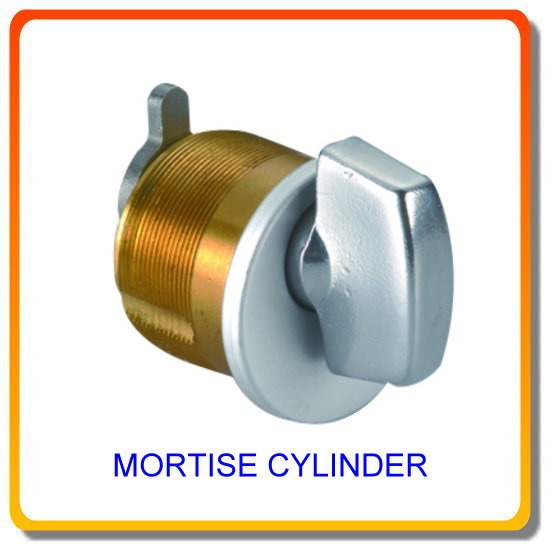

* Accept 1-5/32" mortise key or thumbturn cylinder

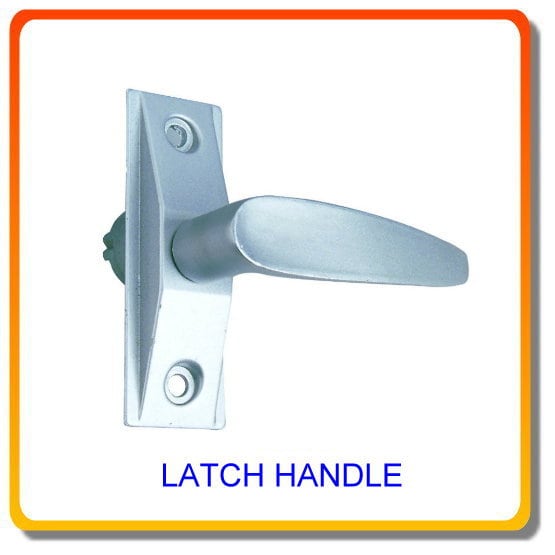

* For use with lever handles & paddles

* Latch bolt, all matel with hardened steel internal pins

* Latch bolt can be reversed

* Latch 13mm chrome plated with delrin insert for smooth, quiet latching

* The latch bolt is designed for use in commercial industrial, and institutional buildings

* Auxiliary bolt, all metal

* Steel lock body with zinc plated

* AL / DU / BK faceplate finish available

* Backset: 31/32", 1-1/8", 1-1/2" available

* The lock accepts any standard thread mortrise cylinder from either or both sides..

* Faceplate: flat, radius, radius with weatherstrip, right bevel or left bevel available

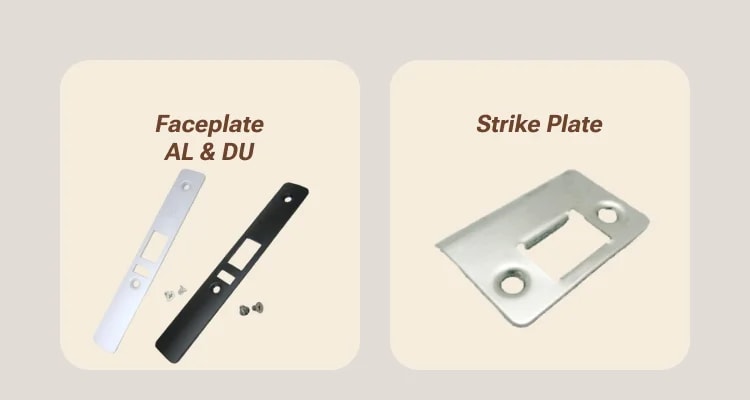

* Faceplate and strike for optional

* Slim latch (12.7mm width) of item #002BS/#005BS for optional order

Item No.	Feature		Backset
#002	Euro Profile Cylinder Version	16mm Standard Latch can be reversed by Tool	31/32", 1-1/8", 1-1/2"
#002A		16mm Standard Latch can be reversed by Hand
#002B		16mm Standard Latch can Easily be reversed by Tool
#002BS		12.7mm Slimmer Latch can Easily be reversed by Tool
#005	Mortise Cylinder Version	16mm Standard Latch can be reversed by Tool
#005A		16mm Standard Latch can be reversed by Hand
#005B		16mm Standard Latch can Easily be reversed by Tool
#005BS		12.7mm Slimmer Latch can Easily be reversed by Tool

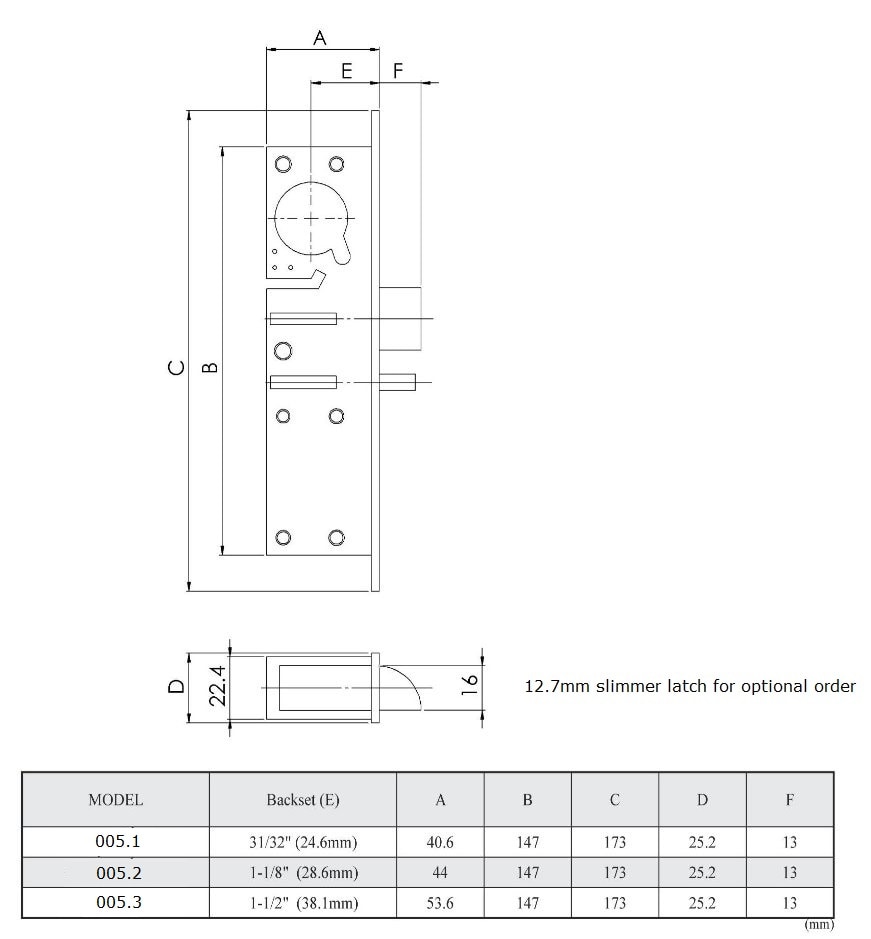

Drawing of Backset 1-1/8 Inch Aluminum Door Deadlatch lock

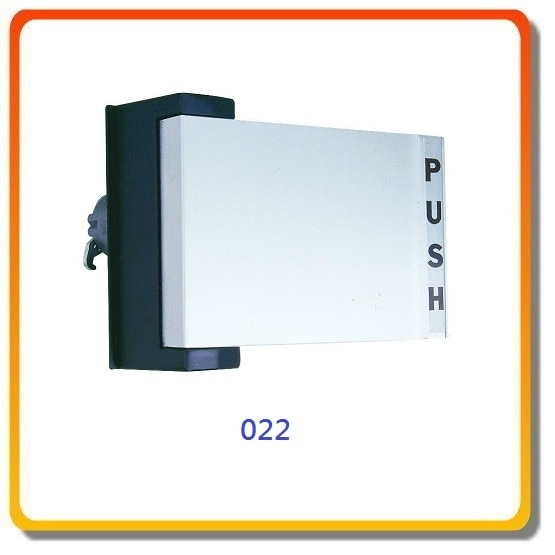

Door Lock with Pull Handle Home Door Lock Aluminum Dead Latch Hidden Door Stile Security Mortise Lock
