Heavy Duty 105kgs Hidden Narrow Stile Glass Door Closer

375

* Track Arm With Hold-open

* Non-handed installation

* Stable Hydraulic Fluid for any climatic operation

* Ideal for glass door with narrow frame

* Adjustable closing & latching speed

* Force 4 for weight range 85kgs

* Max. door width: 1250 x 2100mm

* Max door weight: 105kgs

* 500,000 cycles passed

* Guarantee: 3years

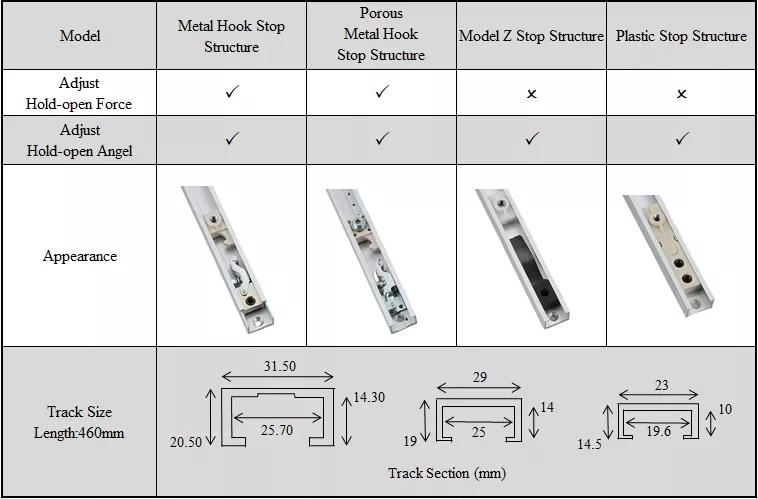

* Track and Stop Structure:

85 Kgs Door Weight Deavy Duty Hydraulic Hidden Door Closer Hinge/aluminum closure

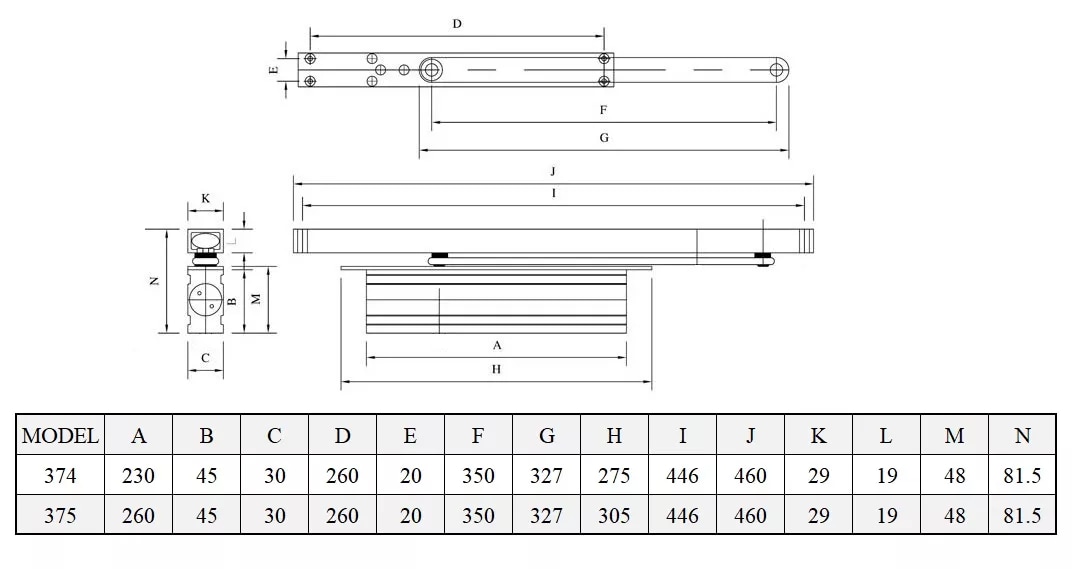

Drawing

85 Kgs Narrow Door Frame Hydraulic Concealed Door Closer

Optional function:

* Hold open

* Frost-resistant oil / Fire rated oil
